Jet 222332

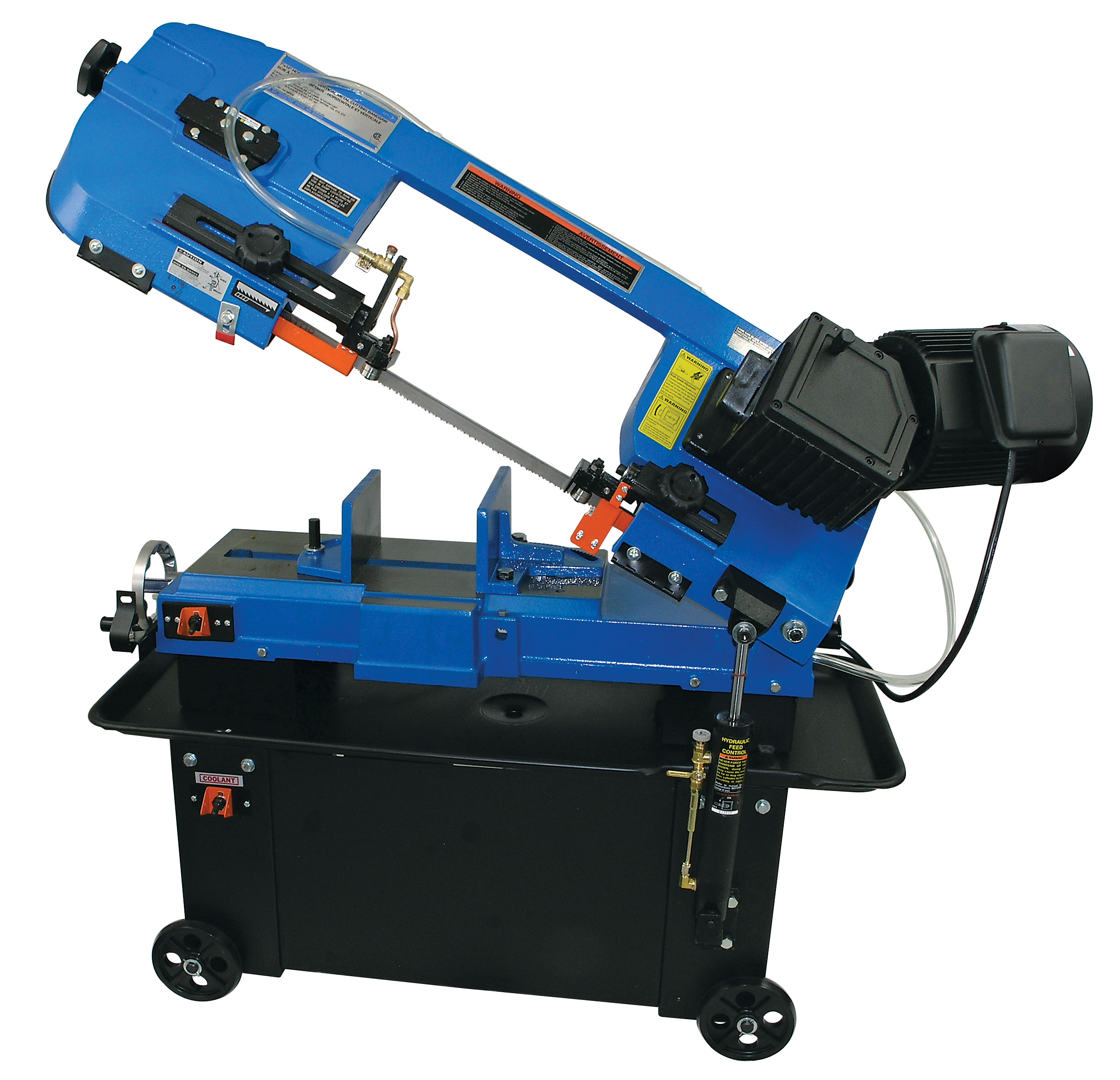

7" x 12" Horizontal/Vertical Bandsaw
SKU: JT-222332
Manufacturer part number: 222332
Delivery date: 3-5 days
Manufacturer: Jet
$3,254.10
  • Heavy duty cast iron construction for accuracy and durability
  • Three speed gear box replaces less efficient belt drive systems found on most comparable machines
  • Horizontal cutting feed rate controlled by a fully adjustable hydraulic ram
  • Coolant delivery system provides fast cutting while extending the service life of the blade and the saw
  • Quiet cutting, rated within 70 decibels
  • Easy cleaning with removable filter screen
  • Automatic shut-off system stops the machine when the stock is cut through
  • Quick action vise adjusts from 90° to 45° for mitre cutting
  • Cuts up to 7" round stock and up to 7" by 12" rectangular stock
  • Full 1 HP, single phase motor
  • Complete with four wheels for mobility
  • Standard Equipment: blade; coolant system; material stop system; 4 wheels; vertical work table; enclosed stand; blade chip brush; quick action vise
Capacity 90° 7" (circle), 7" x 12" (rectangular shape)
Capacity 45° 4" (circle), 5" x 6" (rectangular shape)
Throat Depth 7"
Blade Size 3/4” x 0.032” x 93”, 5/8 TPI
Vertical Work Table 9-1/2" x 10"
Vise Tilts 45°
Blade Speeds (SFPM) 125, 215, 270
Floor Space Required 49-1/2" x 17-1/2"
Motor 1 HP, 1Ph, 115/230 Volt Pre-wired 115V; 1,720 RPM
Shipping Dimensions 51" x 18" x 40"
  • Heavy duty cast iron construction for accuracy and durability
  • Three speed gear box replaces less efficient belt drive systems found on most comparable machines
  • Horizontal cutting feed rate controlled by a fully adjustable hydraulic ram
  • Coolant delivery system provides fast cutting while extending the service life of the blade and the saw
  • Quiet cutting, rated within 70 decibels
  • Easy cleaning with removable filter screen
  • Automatic shut-off system stops the machine when the stock is cut through
  • Quick action vise adjusts from 90° to 45° for mitre cutting
  • Cuts up to 7" round stock and up to 7" by 12" rectangular stock
  • Full 1 HP, single phase motor
  • Complete with four wheels for mobility
  • Standard Equipment: blade; coolant system; material stop system; 4 wheels; vertical work table; enclosed stand; blade chip brush; quick action vise
Capacity 90° 7" (circle), 7" x 12" (rectangular shape)
Capacity 45° 4" (circle), 5" x 6" (rectangular shape)
Throat Depth 7"
Blade Size 3/4” x 0.032” x 93”, 5/8 TPI
Vertical Work Table 9-1/2" x 10"
Vise Tilts 45°
Blade Speeds (SFPM) 125, 215, 270
Floor Space Required 49-1/2" x 17-1/2"
Motor 1 HP, 1Ph, 115/230 Volt Pre-wired 115V; 1,720 RPM
Shipping Dimensions 51" x 18" x 40"
