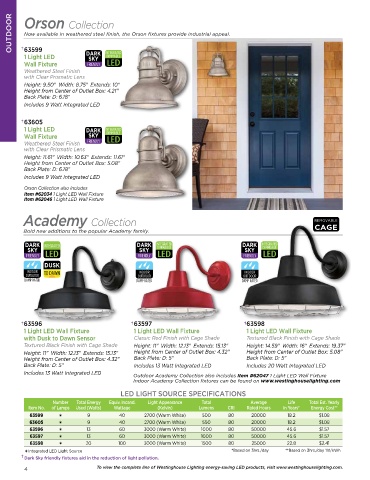

Page 4 - Catalogue de luminaires extérieurs Westinghouse 2018
P. 4
OUTDOOR Orson Collection
Now available in weathered steel finish, the Orson fixtures provide industrial appeal.
†
63599
1 Light LED DARK INTEGRATED
DIMMABLE
SKY
Wall Fixture FRIENDLY
Weathered Steel Finish
with Clear Prismatic Lens
Height: 9.50" Width: 8.75" Extends: 10"
Height from Center of Outlet Box: 4.21"
Back Plate: D: 6.18"
Includes 9 Watt Integrated LED
† 63605
1 Light LED DARK INTEGRATED
Wall Fixture SKY DIMMABLE
Weathered Steel Finish FRIENDLY
with Clear Prismatic Lens
Height: 11.61" Width: 10.63" Extends: 11.61"
Height from Center of Outlet Box: 5.08"
Back Plate: D: 6.18"
Includes 9 Watt Integrated LED
Orson Collection also includes
Item #62034 1 Light LED Wall Fixture
Item #62046 1 Light LED Wall Fixture
Academy Collection REMOVABLE
Bold new additions to the popular Academy family. CAGE
DARK INTEGRATED DARK INTEGRATED DARK INTEGRATED
DIMMABLE
DIMMABLE
SKY SKY SKY
FRIENDLY FRIENDLY FRIENDLY
DUSK
INDOOR TO DAWN INDOOR INDOOR
OUTDOOR OUTDOOR OUTDOOR
DAMP RATED DAMP RATED DAMP RATED
† 63596 † 63597 † 63598
1 Light LED Wall Fixture 1 Light LED Wall Fixture 1 Light LED Wall Fixture
with Dusk to Dawn Sensor Classic Red Finish with Cage Shade Textured Black Finish with Cage Shade
Textured Black Finish with Cage Shade Height: 11" Width: 12.13" Extends: 15.13" Height: 14.59" Width: 16" Extends: 19.37"
Height: 11" Width: 12.13" Extends: 15.13" Height from Center of Outlet Box: 4.32" Height from Center of Outlet Box: 5.08"
Height from Center of Outlet Box: 4.32" Back Plate: D: 5" Back Plate: D: 5"
Back Plate: D: 5" Includes 13 Watt Integrated LED Includes 20 Watt Integrated LED
Includes 13 Watt Integrated LED
Outdoor Academy Collection also includes Item #62047 1 Light LED Wall Fixture
Indoor Academy Collection fixtures can be found on www.westinghouselighting.com
LED LIGHT SOURCE SPECIFICATIONS
Number Total Energy Equiv. Incand. Light Appearance Total Average Life Total Est. Yearly
Item No. of Lamps Used (Watts) Wattage (Kelvin) Lumens CRI Rated Hours in Years* Energy Cost**
63599 � 9 40 2700 (Warm White) 500 80 20000 18.2 $1.08
63605 � 9 40 2700 (Warm White) 550 80 20000 18.2 $1.08
63596 � 13 60 3000 (Warm White) 1000 80 50000 45.6 $1.57
63597 � 13 60 3000 (Warm White) 1000 80 50000 45.6 $1.57
63598 � 20 100 3000 (Warm White) 1500 80 25000 22.8 $2.41
� Integrated LED Light Source *Based on 3hrs./day **Based on 3hrs./day 11¢/kWh
† Dark Sky friendly fixtures aid in the reduction of light pollution.
4 To view the complete line of Westinghouse Lighting energy-saving LED products, visit www.westinghouselighting.com.
