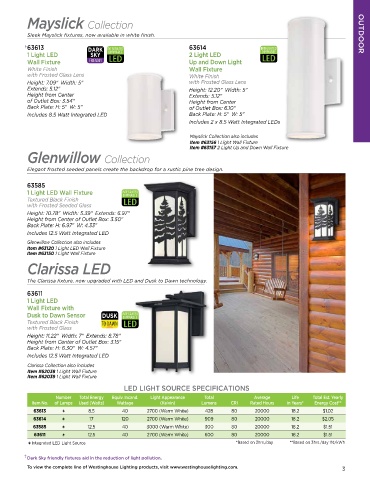

Page 3 - Catalogue de luminaires extérieurs Westinghouse 2018

Mayslick Collection

Sleek Mayslick fixtures, now available in white finish. OUTDOOR
† 63613 DARK INTEGRATED 63614 INTEGRATED
1 Light LED SKY DIMMABLE 2 Light LED DIMMABLE
Wall Fixture FRIENDLY Up and Down Light
White Finish Wall Fixture
with Frosted Glass Lens White Finish
Height: 7.09" Width: 5" with Frosted Glass Lens
Extends: 5.12" Height: 12.20" Width: 5"
Height from Center Extends: 5.12"
of Outlet Box: 3.54" Height from Center
Back Plate: H: 5" W: 5" of Outlet Box: 6.10"
Includes 8.5 Watt Integrated LED Back Plate: H: 5" W: 5"
Includes 2 x 8.5 Watt Integrated LEDs

Mayslick Collection also includes
Item #63156 1 Light Wall Fixture
Item #63157 2 Light Up and Down Wall Fixture
Glenwillow Collection

Elegant frosted seeded panels create the backdrop for a rustic pine tree design.

63585
1 Light LED Wall Fixture INTEGRATED
DIMMABLE
Textured Black Finish
with Frosted Seeded Glass
Height: 10.78" Width: 5.39" Extends: 6.97"
Height from Center of Outlet Box: 3.50"
Back Plate: H: 6.97" W: 4.33"
Includes 12.5 Watt Integrated LED
Glenwillow Collection also includes
Item #63120 1 Light LED Wall Fixture
Item #63150 1 Light Wall Fixture
Clarissa LED

The Clarissa fixture, now upgraded with LED and Dusk to Dawn technology.

63611
1 Light LED
Wall Fixture with
Dusk to Dawn Sensor DUSK INTEGRATED
DIMMABLE
Textured Black Finish TO DAWN
with Frosted Glass
Height: 11.22" Width: 7" Extends: 8.78"
Height from Center of Outlet Box: 3.15"
Back Plate: H: 6.30" W: 4.57"
Includes 12.5 Watt Integrated LED
Clarissa Collection also includes
Item #62038 1 Light Wall Fixture
Item #62039 1 Light Wall Fixture
LED LIGHT SOURCE SPECIFICATIONS
Number Total Energy Equiv. Incand. Light Appearance Total Average Life Total Est. Yearly
Item No. of Lamps Used (Watts) Wattage (Kelvin) Lumens CRI Rated Hours in Years* Energy Cost**
63613 � 8.5 40 2700 (Warm White) 428 80 20000 18.2 $1.02
63614 � 17 120 2700 (Warm White) 909 80 20000 18.2 $2.05
63585 � 12.5 40 3000 (Warm White) 300 80 20000 18.2 $1.51
63611 � 12.5 40 2700 (Warm White) 600 80 20000 18.2 $1.51
� Integrated LED Light Source *Based on 3hrs./day **Based on 3hrs./day 11¢/kWh

† Dark Sky friendly fixtures aid in the reduction of light pollution.
To view the complete line of Westinghouse Lighting products, visit www.westinghouselighting.com. 3
